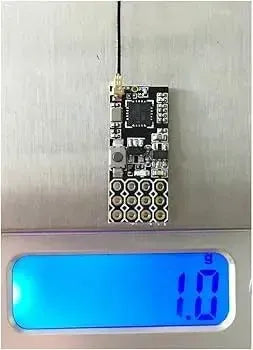

The perfect receiver for your Micro Skydiver. This tiny receiver perfectly fits in the micro skydiver jumpsuit, you can slide it in very easily by just opening the jumpsuit on the front and insert it in the skydiver leg. In addition to being handy and easy to wire, this micro receiver is super lightweight (only 1.0 gram).

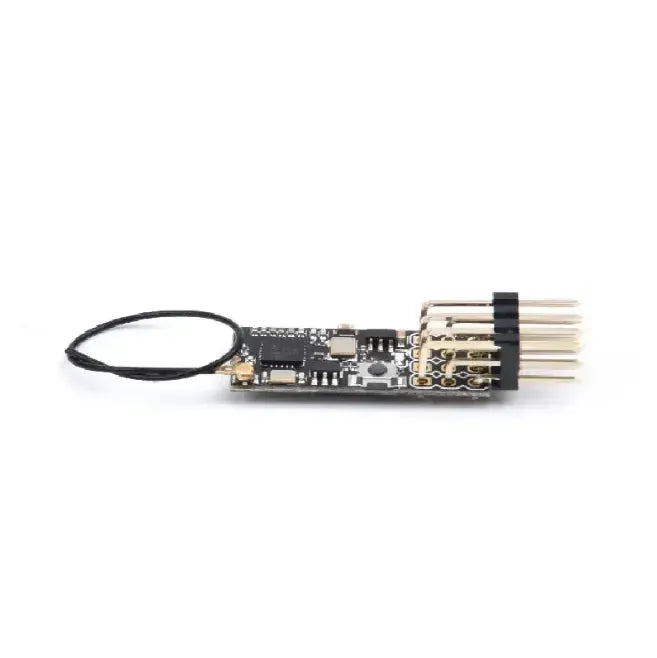

The connector has to be soldered into the board if you don't select the "Assembled and soldered" option above.

This Micro Receiver is compatible with FlySky i6 i6X i6S / FS-i6 FS-i6X FS-i6S Transmitter.

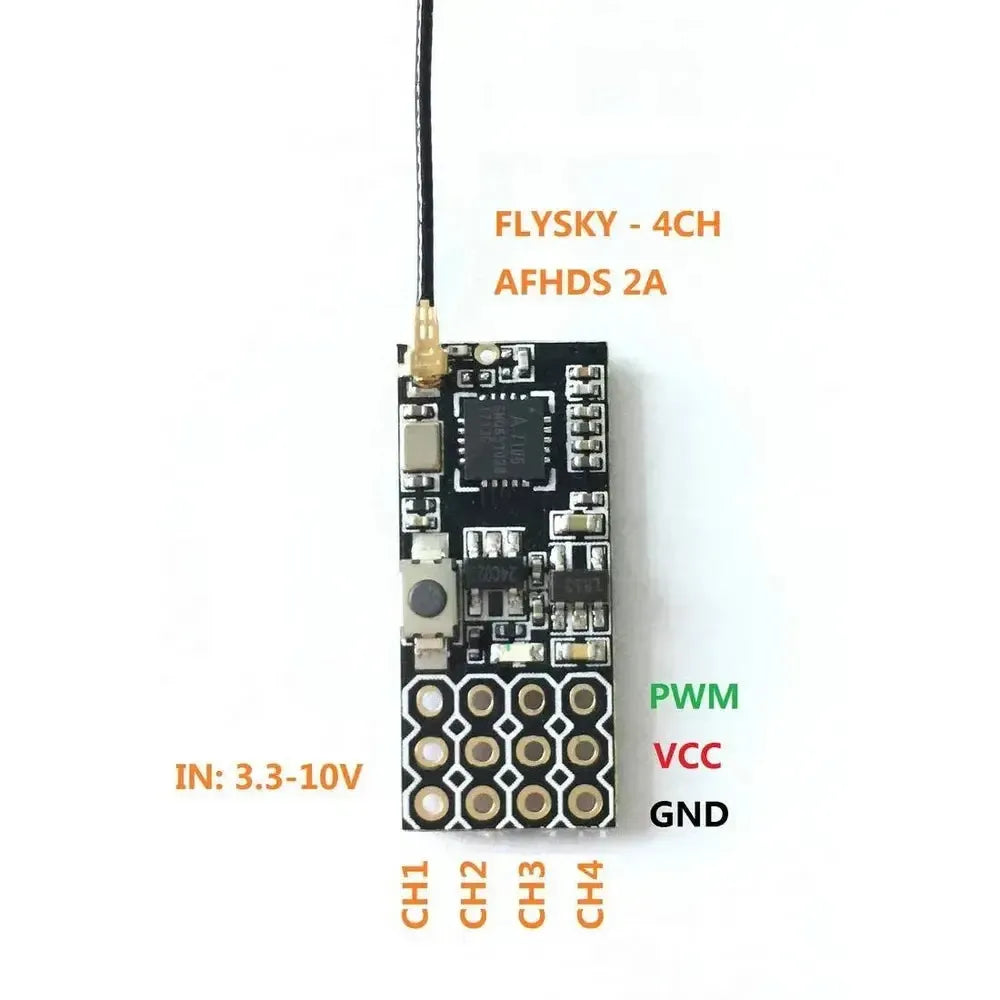

Support: for FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitter.

Binding procedure

Press and hold the key on the receiver and connect the power to the receiver. The blue light on the receiver starts flashing, indicating bindind mode.
Set the transmitter into bind mode (make sure that you selected the AFHDS 2A protocol). After getting into bind mode, the receiver light changes from flashing to slow flashing.
Get the transmitter out of bind mode. The receiver blue light becomes steady, indicating that the signal receive is successful.

Features

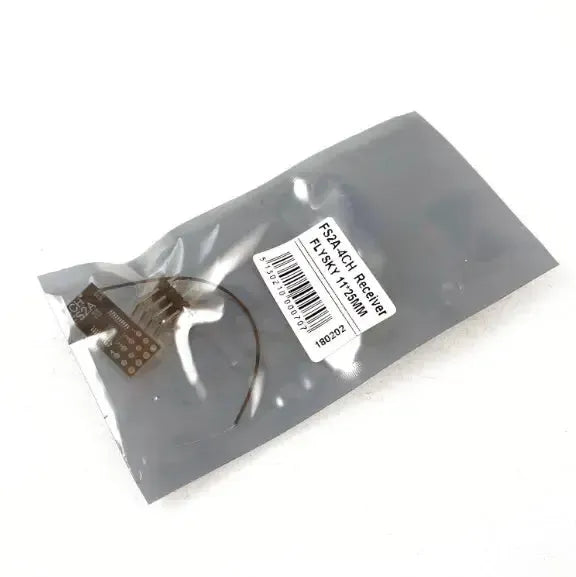

Box contents

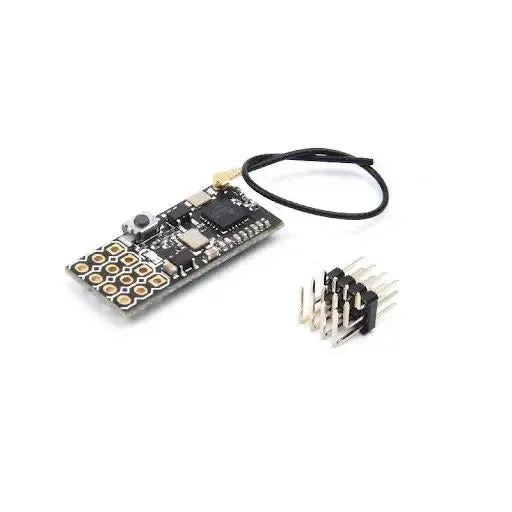

1x Receiver
1x Connector

User Guides: FS2A_manual_EN
